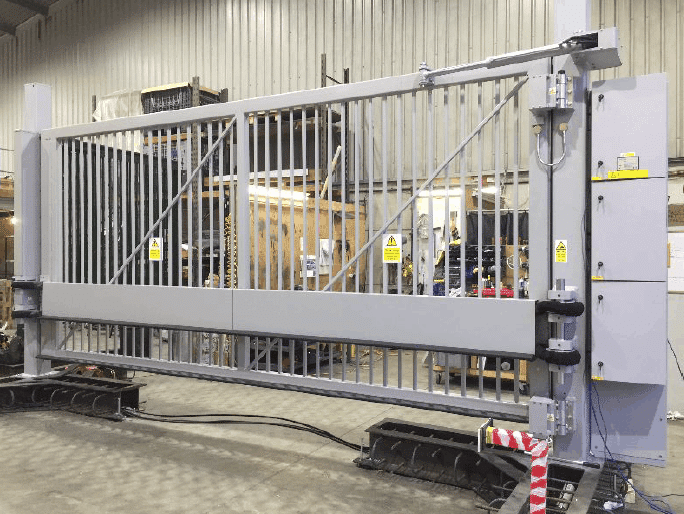

The CHALLANGER PAS68 swing gate is available as a manual double leaf swing gate with an opening of up to 8.0m or an automated single leaf gate swing with opening of up to 6.0m. Gate Tested on 7.5T(N2) vehicle at 40mph (64kph). 8.0m clear opening x 2.4m high. Only 1.1m of penetration and zero debris.
- Available as a manual double leaf swing gate with an opening of up to 8.0m.
- Available as an automated single leaf gate swing with an opening of up to 6.0m.
- Heights up 3.6m.
- Very secure with opening and closing speed of 25-35 seconds.
- Full PLC control.
- Galvanised and powder coated.
- Smooth and quiet operation.
- Low maintenance with few moving parts.
Special Features and Benefits.
- Available with any mesh infill, or cladding.
- An in-house design team with 3D solid modeling can design a solution unique to your requirements.
- Comes with the option of various safety systems and manual release in the event of power failure.
- The gates are manufactured from 50mm x 50mm box section with 25mm bars spaced at approx. 100mm intervals.
