PAS 68 CYCLE RAIL (APT30CR)

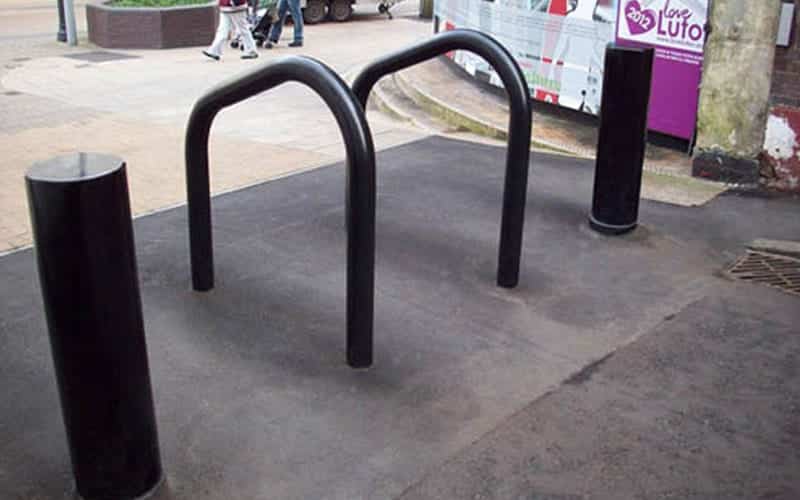

Eagle Automation have a range of PAS68 tested products that support the street furniture scene. Our cycle hoop module is highly versatile and it can be used to create planters, railing systems and other similar products.

APT20CR

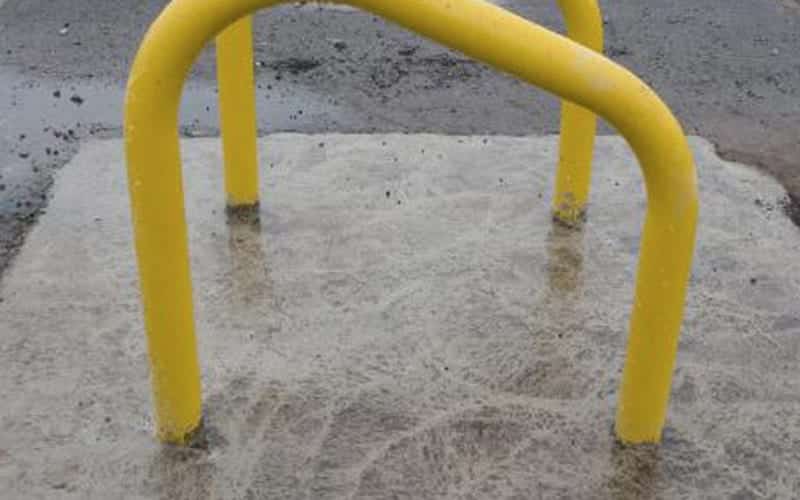

A zero penetration short height cycle hoop tested with the M1 3.5ton vehicle at 48kph. This product was extensively tested at 2 angles. Designed to complement existing street furniture. Shallow depth foundation of just 250mm. Available in a variety of heights (minimum 750mm above ground) . Available with gaps between 800mm and 1200mm . Suitable for securing bikes, scooters and motorcycles. Galvanised, painted or stainless steel finish.
Performance Classification (PAS68)

Vehicle Test Weight Vehicle Class Vehicle Speed Vehicle Angle Vehicle Penetration 25kg+ Dispersion

V/3500 KG N1 48 15 0.0 0.0

V/3500 KG N1 48 90 1.5 0.0

Height above ground of 750mm

Shallow foundation of just 2000mm x 2000mm x 250mm

Supplied as a pair with all integral connections

No re-bar required

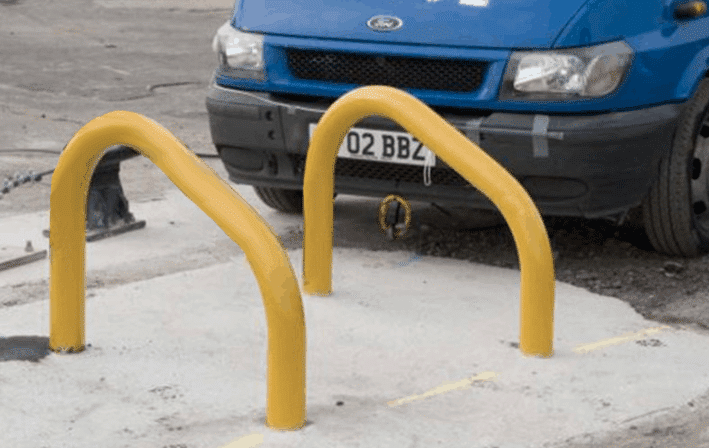

Bollard tested with N1 3500kg vehicle at 48kmh

Operational Finishes: hot-dip galvanised; powder-coated; wet painted; stainless steel
IWA14-1 VERTICAL LIFT LOCKDOWN IMPAKT DEFENDER RAPID DEFENDER RB002-40 – PAS68 SLIMLINE RISING BOLLARD (SEMI-AUTO) PAS68 TRUCKSTOPPER 6-30 (Fixed/Removable) PAS68 TRUCKSTOPPER 7-40 (Fixed/Removable) IWA TRUCKSTOPPER 9-50 (STATIC) PAS68 CARSTOPPER 30 (STATIC) RB001-30 – PAS68 SLIMLINE RISING BOLLARD (SEMI-AUTO) IWA TRUCKSTOPPER 9-40 (STATIC) STANDARD BOOM GATE WEDGE II WEDGE I STRONG ARM BARRIER – M30 & M50 PAS 68 CYCLE RAIL (APT40CR) IWA TRUCKSTOPPER 10-30 – SURFACE MOUNTED (STATIC) IWA TRUCKSTOPPER BRIDGE BOLLARD M30 & M50 BOLLARDS (Static & Auto) PAS68 Static Bollards – APT30SM
PAS68 Cycle Hoop APT20CR Download

Vehicle Test Weight	Vehicle Class	Vehicle Speed	Vehicle Angle	Vehicle Penetration	25kg+ Dispersion
V/3500 KG	N1	48	15	0.0	0.0
V/3500 KG	N1	48	90	1.5	0.0
