Tracked Gate M50

  1. Home
  2. /
  3. Products
  4. /
  5. Hostile Vehicle Mitigation (HVM)
  • Description
  • Technical Specifications
  • Related Products
  • Downloads
  • The unique design of the Tracked Gate M50 affords impact protection and is therefore ideal for all critical infrastructure applications ranging from correctional facilities, critical defence sites, courts, airports, refineries, embassies, and many other designated high-risk areas.

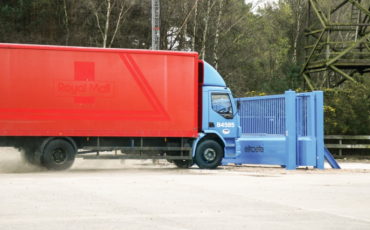

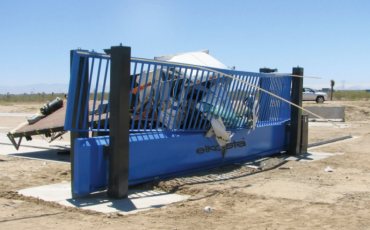

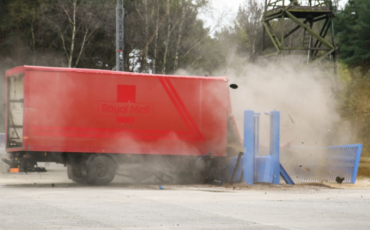

    The Tracked Gate M50 can be adapted in height and fitted with anti-climbing devices to comply with site-specific requirements. It can be utilised as an anti-vehicle barrier. The Tracked Gate M50has been the subject of rigorous design appraisal and testing regimes by government agencies in the United States. It has been successfully crash rated according to ASTM F2656-07 and PAS 68:2010.

    The Tracked Gate M50 system is fully compatible with all access control systems and its advanced design and technology combined with its application flexibility, provides a total solution for all perimeter security access points vulnerable to hostile vehicle attacks.

  • Performance Classification PAS68 : 2010 (tested and rated with 7m clear opening width)

    Vehicle  Test Weight Vehicle Class Vehicle Speed Vehicle Angle Vehicle Penetration 25kg+ Dispersion
    V/7500 KG N3 80 90 0.0 4.3

    Advantages of the Elkosta Tracked Gate M50

    • Up to 7000mm clear widths
    • Up to 3000mm height
    • Shallow foundation 400mm deep
    • Top edge foundation 100mm below finished floor level
  • EAG01040D Rapide – IWA14-1 Bi-Folding Speed Gate (Double) PAS 68:2010 Bi-Folding Speed Gate RAPIDE (40-50mph) SURFACE MOUNTED PLANTER 40 SECURUS RAMPART Public Impact Protection System (PIPS) CRASH BENCH 40 SECURUS S3 SECURUS S2 CLAW Mobile Hostile Vehicle Barrier IWA-14 TRUCKSTOPPER 17 (Fixed/Removable) WEDGE II WEDGE I TRUCKSTOPPER 7-40 (Fixed/Removable) RISING ARM BARRIER CITY PROTECTOR RB003-50 – PAS68 SLIMLINE RISING BOLLARD (SEMI-AUTO) IMPAKT DEFENDER RAPID DEFENDER RB002-40 SLIMLINE RISING BOLLARD (SEMI-AUTO) TRUCKSTOPPER 6-30 (Fixed/Removable)
  • Tracked Gate M50 Catalogue Download
    Datasheet - Tracked Gate M50 Download
