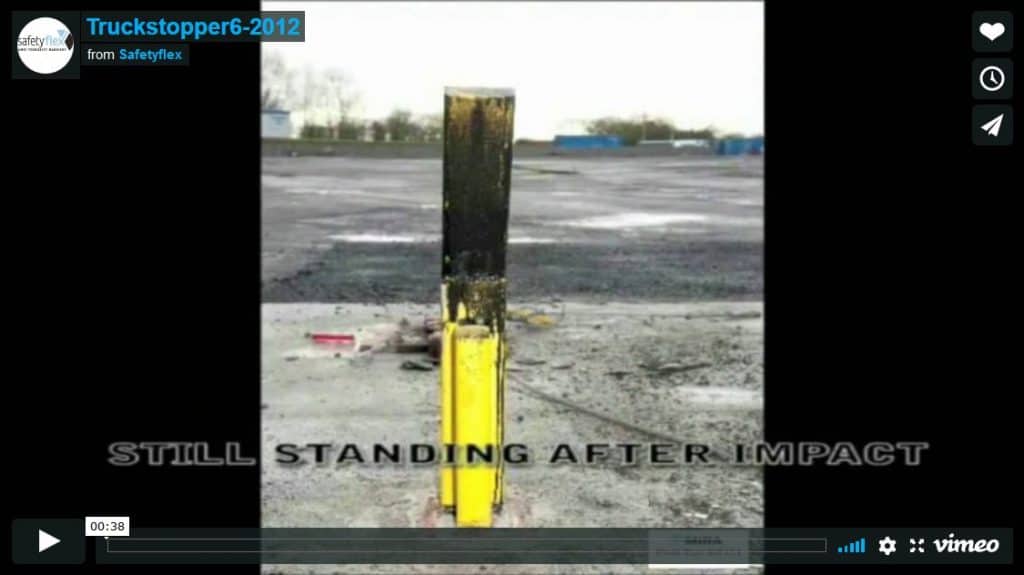

The new technology TRUCKSTOPPER 6-30 has a small super light weight base plate – 46kg only. This patent pending design is a technology break through in single shallow footing bollard systems of 200mm deep, that will stop a 7.5 ton truck at 30 mph or 48 km at 90 degrees from breaking through the security line.
| Vehicle Test Weight | Vehicle Class | Vehicle Speed | Vehicle Angle | Vehicle Penetration | 25kg+ Dispersion | Footing Depth mm |
| V/7500 KG | N2 | 48 | 90 | 2.8 | 0 | 200 |
The 200mm deep single shallow bollard will also reduce the need to re-divert utilities. The system is the most economical on the market and very aesthetically pleasing. This bollard is small and easy to install. This system is designed to follow the contours of the ground and can go around corners. If the post gets damaged after an attack they can be removed from the slipper box and replaced with no need to remove or replace the concrete foundation.
Once fitted the only maintenance is to repaint when needed or the bollard can be covered with a mild or stainless steel shroud.
